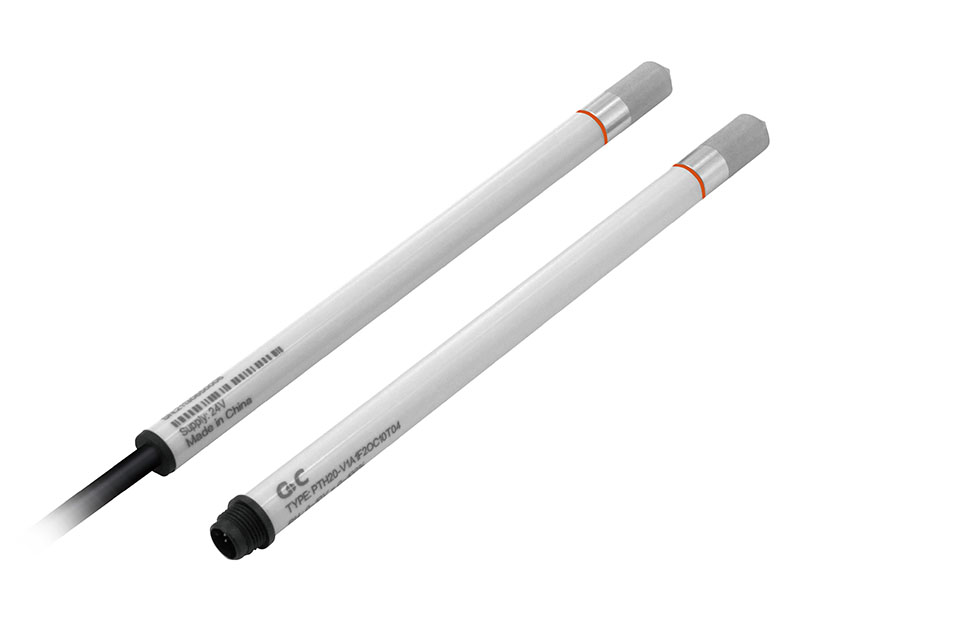

Technical Features
Output signal: two ways 4 ... 20mA (two-wire system), 0 ... 1 5 10V or RS485
Output parameter: temperature, relative humidity
Temperature compensation: temperature compensation and calibration in the range of -40 ... 80℃
Filter：plastic film, stainless steel sintering, VHP, PTFE (optional)
Shell material: flame-retardant PC
Typical Applications
Environmental test chamber
Biological incubator
Biopharmaceutical machinery
Handheld meter
Technical Data
Input and output
|
Operating voltage
|
24V DC ±20%
|
|
Current output
|
Two ways 4 ... 20mA RL < 500 Ohm
|
|
Power consumption
|
＜ 20mA (current or voltage ouotput)
|
|
Voltage output
|
Two ways 0 ... 1/ 5 /10V
|
|
|
|
|
|
Channel precison: ±0.2%FS
|
|
|
＜ 6mA (digital output)
|
|
Digital output
|
RS485 (Modbus RTU)
|
Measurement Parameter
|
Relative humidity
|
|
|
Temperature
|
|
|
Measurement range
|
0 ... 100%RH
|
|
Measurement range
|
−40 … +80°C
|
|
Measurement precision
|
±2%RH (0 … 90%RH & 20℃)
|
|
Measurement precision
|
±0.2°C
|
|
Calibration error
|
±0.5%RH (0 … 90%RH)
|
|
Calibration error
|
±0.1°C (20°C)
|
|
|
±0.8%RH (40 … 95%RH)
|
|
|
|
|
τ63 response time
|
30s (probe fitted with stainless steel sintered filter)
|
|
- -
|
- -
|
|
Humidity sensitive element
|
High molecular polymer humidity-sensitive capacitor
|
|
Temperature sensitive element
|
Pt1000 (Grade 1/3B, DIN EN 60751)
|
|
|
|
The above precisions are comprehensive precisions, including repeatability, linearity and hysteresis of the measurement, and can be traced to the CNAS standard.
Technical Specification
|
Wiring conneciton
|
Four core thread joint or four core wire 0.5mm2
|
|
Probe protection
|
Plastic film, stainless steel sintering, VHP, PTFE
|
|
Shell material
|
PC (flame-retardant grade UL94-V0)
|
|
Protection grade
|
IP65
|
|
Operating temperature
|
-20 ... 80℃
|
|
Electromagnetic compatibility
|
EN61326-1 EN61326-2-3
|
|
Storage temperature
|
-20 ... 60℃
|
|
|
|
Data download:
PTH20 Probe-Type Temperature and Humidity Transmitter Product Manual
