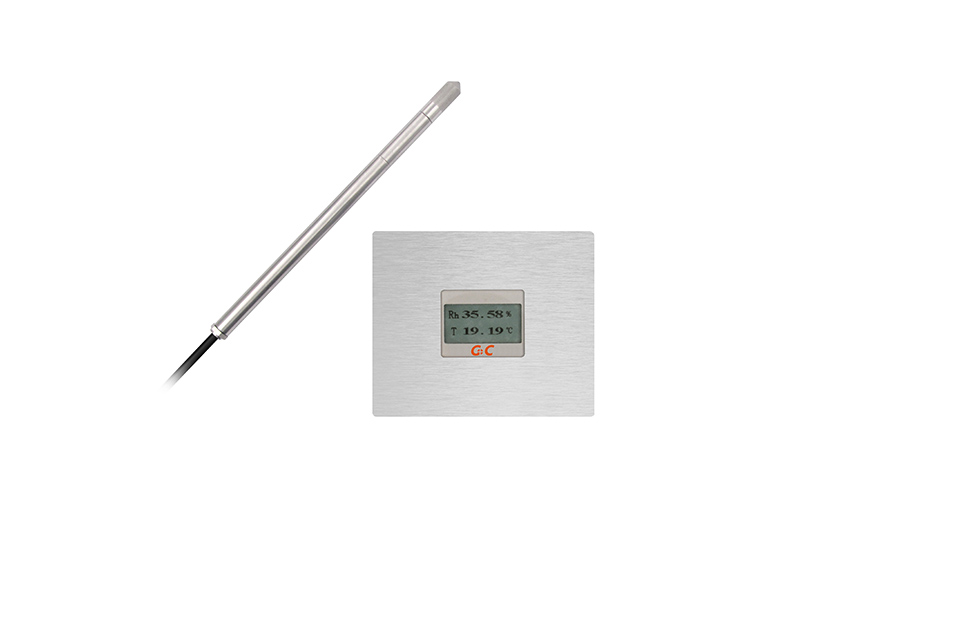

TH160EX-E Wall-Mounted Intrinsically Safe Explosion-Proof Temperature and Humidity Transmitter

Biopharmaceutical clean rooms, laboratories or other high-standard spaces require strict control of temperature and humidity; However, the dangerous and explosive volatile gases may be produced in some areas, so the temperature and humidity sensor needs to have explosion-proof function.

TH160EX-E adopts the wall-mounted structure of dust-proof and ash-proof, which is specifically used for the temperature and humidity monitoring of the explosive and hazardous gas environment in the biopharmaceutical clean rooms. The signal cable is connected through the external terminal to facilitate equipment maintenance.

For the biopharmaceutical clean room O3 or VHP sterile environment, the probe can be equipped with VHP filter PF04, which micropores are filled with the MnO2 composite catalyst with the particle diameter of about 10um; When in touch with the filter, VHP or O3 will be decomposed into H2O and O2 to achieve the purpose of protecting the probe and humidity-sensitive element.

Technical Features

Output signal: two ways 4~20mA or RS485

Shell material: stainless steel panel + flame-retardant PC housing

Installation method: wall-mounted split probe

Explosion-proof class: Ex ia II C T4 G

Calibration interface: single-point or two-point calibration via calibration button

Typical Applications

Biopharmaceutical EMS temperature and humidity monitoring

Technical Data

Input and output

Operating voltage	24V DC ±20%	Current output	4... 20mA RL < 500 Ohm
Power consumption	＜20mA (current output)		Channel precision: ±0.2%FS
	＜ 10mA (digital output)	Digital output	RS485 (Modbus RTU)

Mearsurement Parameter

Relative humidity		Temperature
Measurement range	0 ... 100%RH	Measurement range	−40 … +80°C
Measurement precision	±1%RH (0 … 90%RH & 20℃)	Measurement precision	±0.2°C
Calibration error	±0.5%RH (0 … 90%RH)	Calibration error	±0.1°C (20°C)
	±0.8%RH (40 … 95%RH)
τ₆₃ response time	30s (probe fitted with stainless steel sintered filter)	- -	- -
Humidity sensitive element	High molecular polymer humidity-sensitive capacitor	Temperature sensitive element	Pt1000 (Grade 1/3B, DIN EN 60751)

The above precisions are comprehensive precisions, including repeatability, linearity and hysteresis of the measurement, and can be traced to the CNAS standard.

Technical Specification

Wiring connection	The maximum cable diameter of the terminal is 1.5mm²	Protection grade	IP65
Shell material	Stainless steel + PC (flame-retardant grade UL94-V0)	Operating temperature	Transmitter: -20 ... 60℃ Probe: -40 ... 80℃
Probe protection	Stainless steel sintering, H2O2, PTFE, etc.	Storage temperature	-20 ... 60℃
Cable connector	M16 gland connector	Electromagnetic compatibility	EN61326-1 EN61326-2-3

Data download:

TH160EX-E Wall-Mounted Intrinsically Safe Explosion-Proof Temperature and Humidity Transmitter Product Manual
